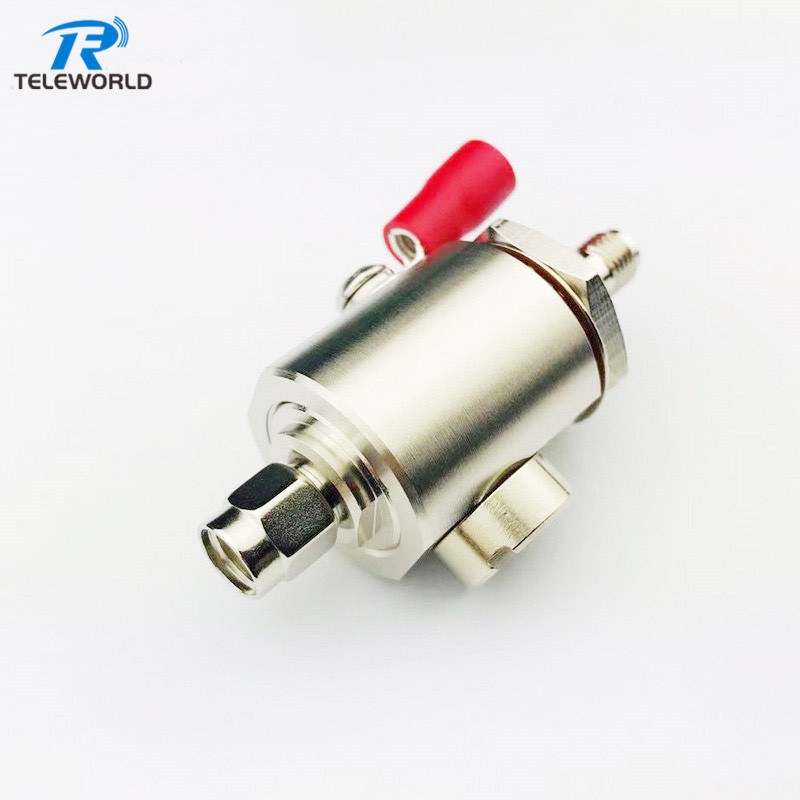

CA-23RP Gas Discharge Lightning surge protector/Surge Arrester DC 2500Mhz N male to female
TWSCA-23RP
Frequency 3GHz optional
Factory supply with fast delivery
Welcome to send inquiry
Lighting strike by lightning means a calamity to the radio equipment.At the severalty microseconds twinkling of any eye,well up to the dozens of kilovltage per meter,whole system bear enormour.It is with lightning arrester(pass electricity of protecting device) must protecting nature,preventative enclosure fully.Correct exertion,guarantee system high-efficience operation
lightning arrester
| Electrical | ||||
| Characteristic Impedance | 50 ohm | |||
| Frequency Range | DC-2.5GHz | |||
| VSWR | ≤1.2 | |||
| Transmission power | 400W | |||
| Dielectric Withstanding Voltage | ≥2500V RMS,50hz,at sea level | |||
| Working Voltage | ≤1000V RMS,50Hz,at sea level | |||
| Residual voltage | ≤30V | |||
| Rated DC voltage | 230V | |||
| Maximum impluse discharge current | 10kA | |||
| Ground wire diameter | ≤4 mm2 | |||
| Response time | <0.5V | |||
| Dielectric Resistance | ≥5000MΩ | |||
| Contact Resistance | Center Contact | ≤2.5mΩ | ||
| Outer Contact | ≤5mΩ | |||
| Environmental & Mechanical | ||||
| Temperature Range | -40℃ ~ +85℃ | |||
| Durability | ≥500 cycles | |||
| ROHS compliant | Full ROHS compliance | |||
| Material and Plating | ||||
| Material | Plating | |||
| Body | Aluminum alloy | Black Oxidation | ||
| Connector | Brass | Tri-alloy | ||
| Insulator | PTFE | — | ||
| Center conductor | Brass | Au | ||
| Circlip | Stainless steel | — | ||
| Screw nut | Stainless steel | — | ||
| Spring pad | Stainless steel | — | ||
| Washer | Stainless steel | — | ||
| Gasket | Silicone rubber | — | ||
| Adjustment screw | Brass | Tri-alloy | ||
